Item ID: 184839

Offered 1 Offered at Best Price

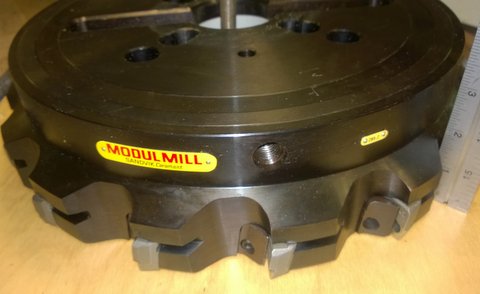

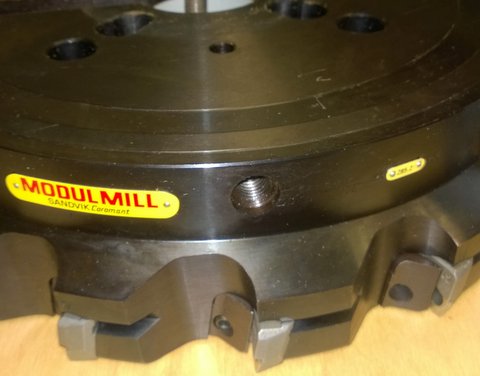

Sandvik Milling Head RA285.2-355 (16 inserts)

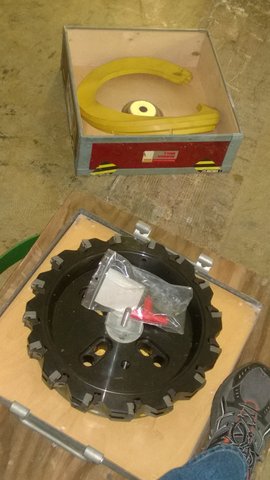

  • Large diameter, 16-cutter, Sandvik Milling Head with Shipping/Storage Case.
  • Like New Condition!  No clear indications of use.

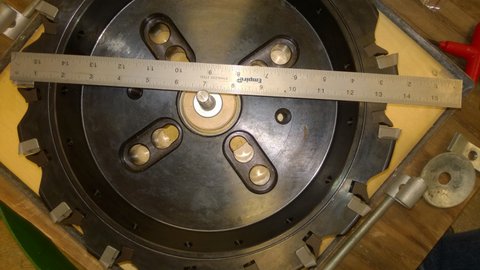

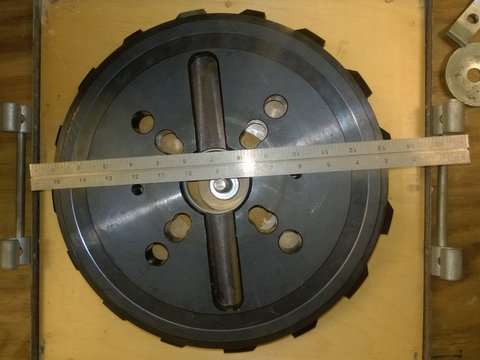

  • Approximate diameter is 14-inches so I assume "355" means 355mm nominal cutting diameter.
  • Procured for R&D use, but never used as intended.
  • I recall that the intended R&D use was simulation of automotive engine deck-face machining operations.  However, other machining operations are also possible.
Sandvik Milling Head RA285.2-355 (16 inserts)
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Sandvik
Model RA 285.2-355-20
Description 16-insert Milling Head
Condition Like New
  • 16pcs removable insert shims/seats which hold milling inserts.
  • 16pcs removable wedges.
  • We likely have record of insert type required.  Please request, if needed.

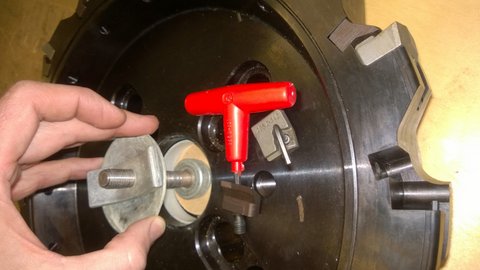

  • 2 keys which fit shim and wedge mounting screws.
Other Information
  • Consumable cutting tool inserts not included.

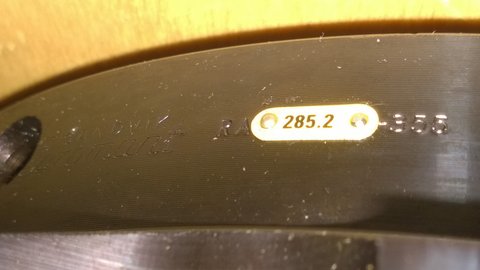

  • Milling head is labeled RA285.2-355.
  • Case is labeled RA285.2-355-20.
  • 16 shims/seats (with insert pockets) are labeled 285.2-342.  These shims/seats/cartridges are listed for $58.10 each at
  • Shim/Seats may be engineered for 75-degree positive cutting (to be verified).
  • Wedges are not marked, but we can work to verify/measure specification.  Similar wedges (285.2-216 and 285.2-218) are listed for $19.22 each at
