FULL DESCRIPTION of Item 202813

in Plasma Equipment Subsystems, Waveguides, etc.
Item ID: 202813

Offered 1 Offered at Best Price

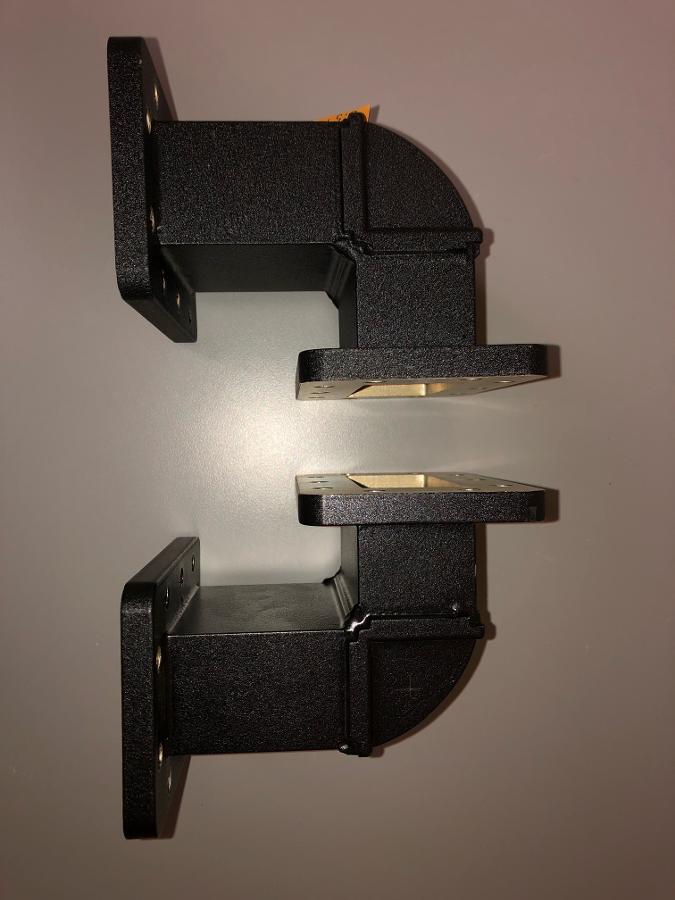

WAVEGUIDE, 90DEG E-PLANE BEND, 3.5 X 2.5

  • Microwave waveguide elbow with black painted orange peel finish.
  • WR284 rectangular waveguide with rectangular flanges.
 WAVEGUIDE, 90DEG E-PLANE BEND, 3.5 X 2.5
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Applied Materials
Model 0190-00362
Description AMAT 0190-00362/P1 waveguide elbow
Accessories
  • AMAT p/n 0190-00363 may be available upon request.
Other Information

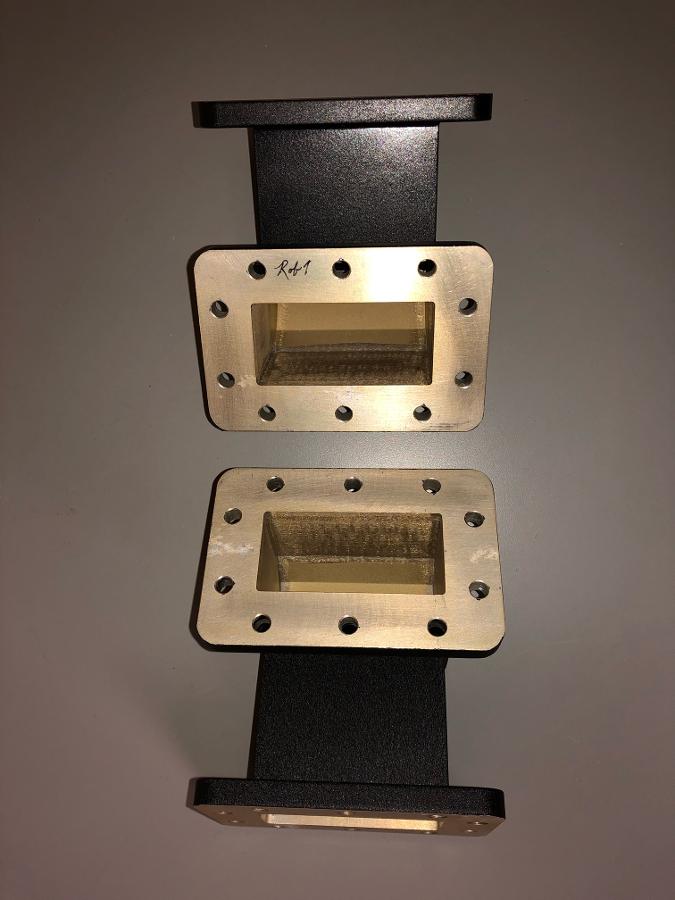

  • Flange Design Notes: Note that one flange is equipped with 10 threaded holes (Helicoil's) to accept 1/4"-20 bolts.  The other flange has through holes only with no threads.
  • Power Rating Notes: This waveguide elbow was removed from a 3kW microwave delivery assembly.  Functionality at power levels above 3kW cannot be guaranteed by Cline Innovations.
Condition Very Good
