Item ID: 257456

**2 Offered at Best Price**

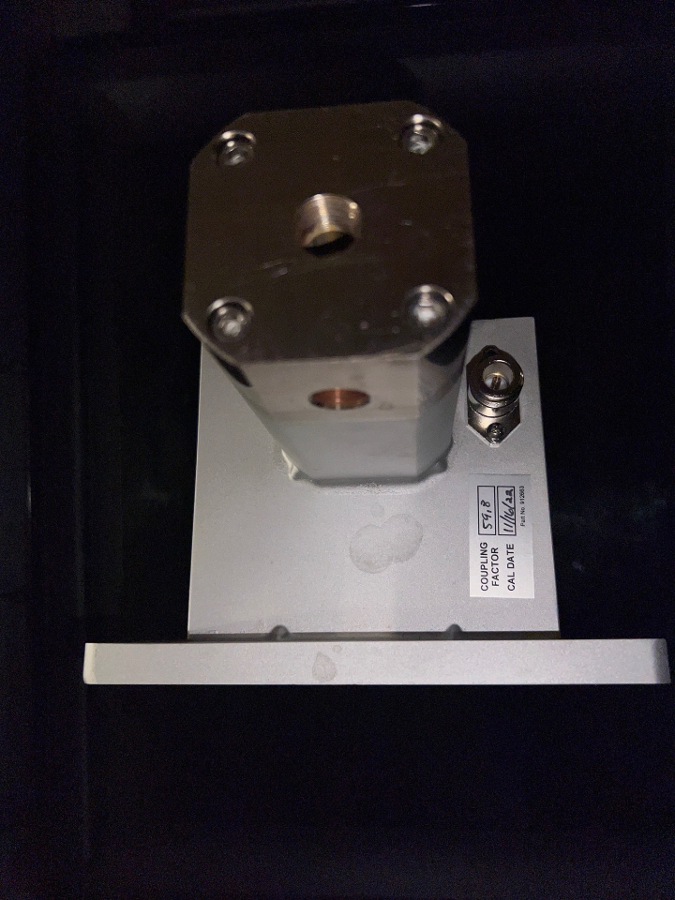

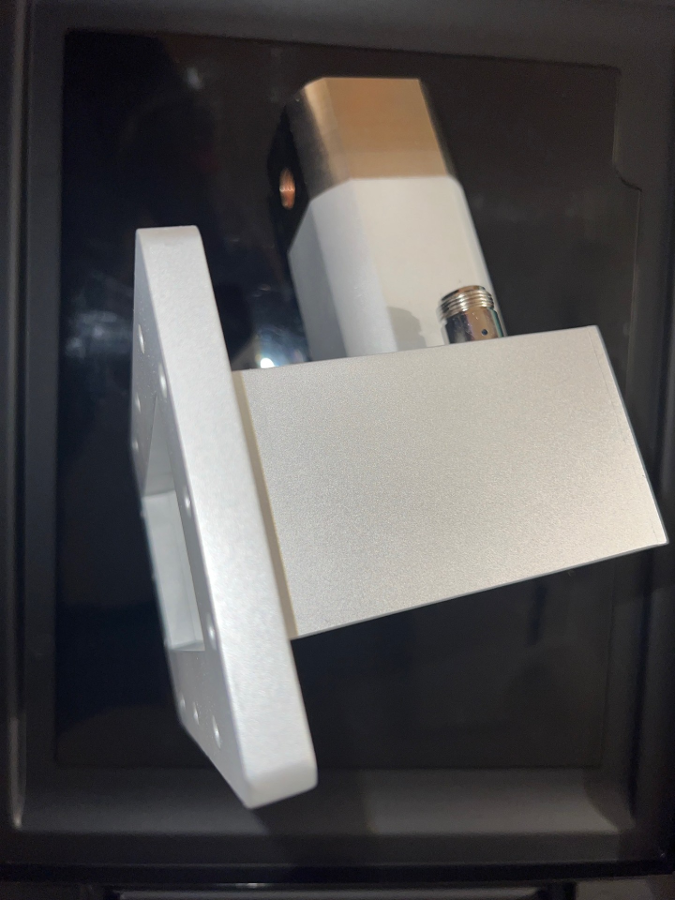

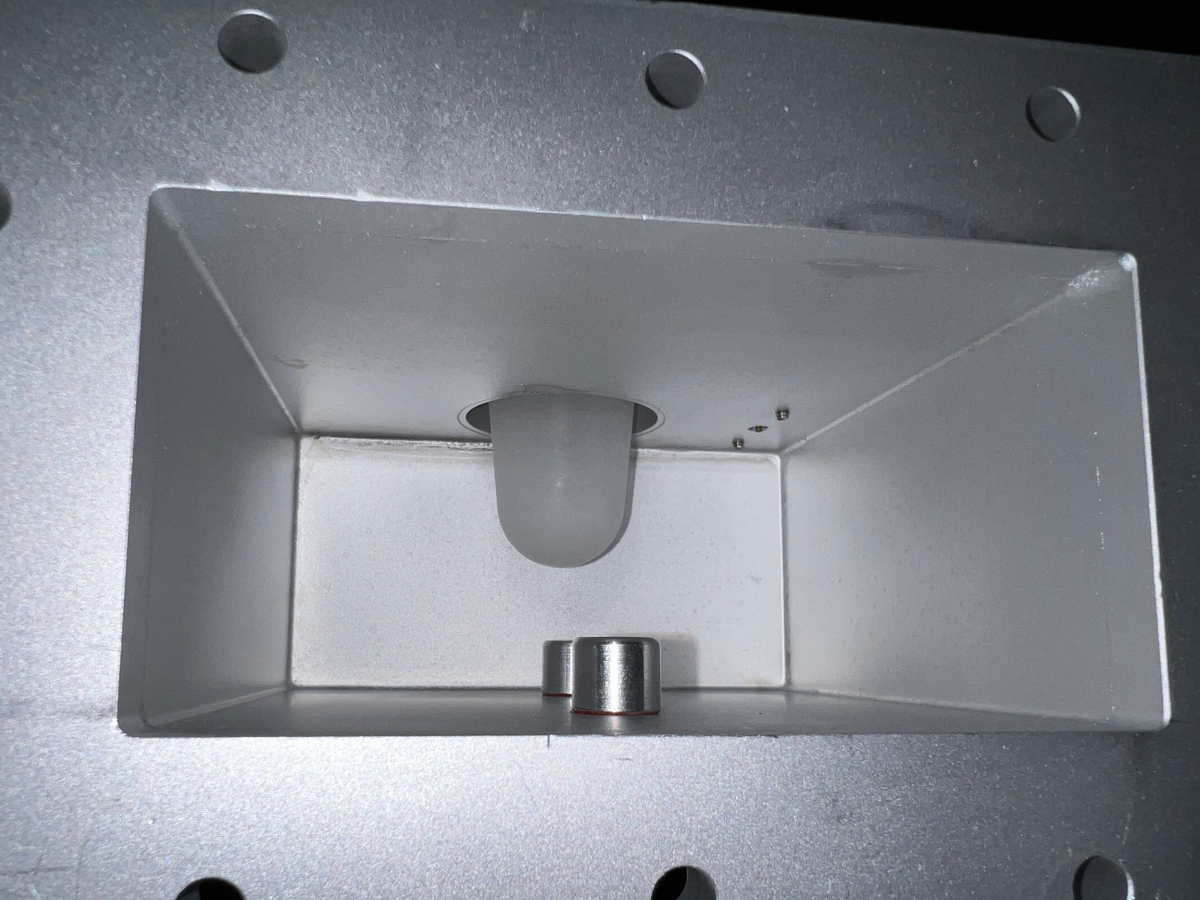

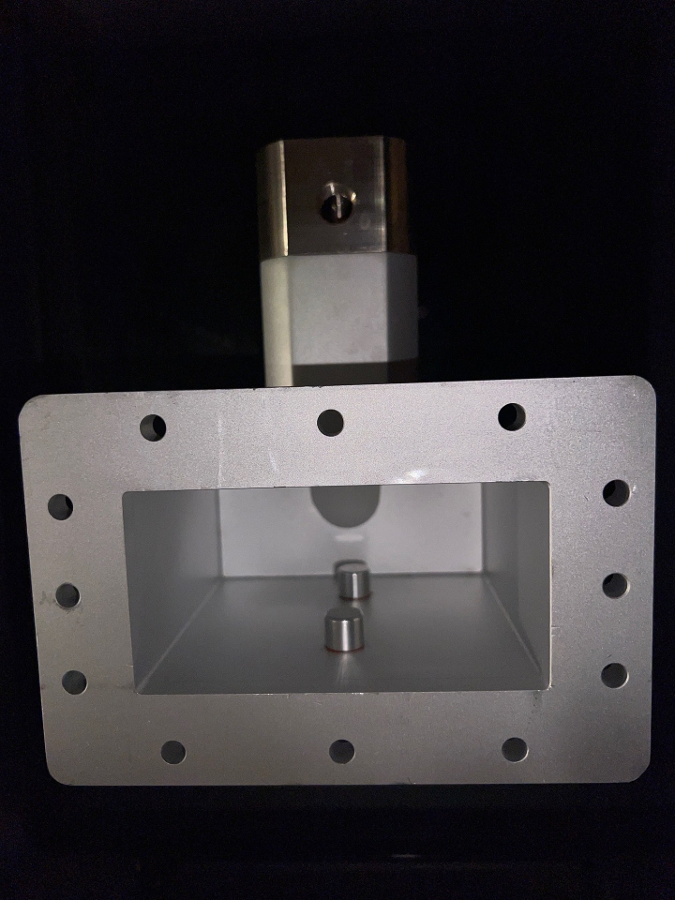

Muegge Gerling GA1232A 15kW Compact Microwave Dummy Load

Creatively designed, compact, dummy load offers high power capacity for its size.
This is an aluminum WR430 rectangular waveguide component engineered to handle up to 15kW of microwave power.
Plated brass water cooling section with 1/4" female threaded water-cooling ports.
Equipped with single directional coupler (nominally 60dB) with N-type power measurement connection.
Detailed photos available upon request.

Unit Price	Unstated
Number of Units	2
Manufacturer	Muegge
Model	GA1232A
Description	15,000 Watt WR430 Microwave Dummy Load
Accessories	Adaptor flanges may be available upon request. One WR430 to WR284 adaptor flange is available as of 8/21/2025.
Other Information	Manuafacturers product webpage with stock photo: Wasserlast - GA1232A - Muegge General Specifications of the 15kW Dummy Load include: Frequency: 2450 MHz nominal. Input Power:15 kW continuous max. Waveguide: WR430 (RG105/U) Input Flange: CPR430 (UG1711/U) Return Loss: 20 dB minimum @ 2450 MHz. Coupler Probe: Type N Female. Coupling Factor: 60 dB +/- 1 dB Water Flow Requirements: 1 lpm per kW input power, 70 psi max. inlet pressure. Construction: Dip brazed aluminum body, dielectric insert, brass water connections. Finish: Clear chemical film (Alodine). Water Load Function: Cline Innovations assessment suggests that this dummy load is designed to allow microwaves to directly couple with H2O molecules inside the waveguide.
Year of Manufacture	2022
Condition	Like New
